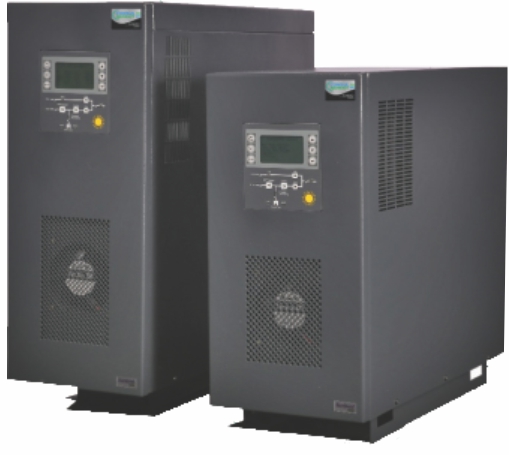

MPS SOLAR INVERTER WITH ENERGY STORAGE

Hybrid Solar power systems

SPECIAL FEATURES

• Multiple 32 bit DSP controllers
• Battery independent operation
• True Bi-directional Solar /nverter
• Higher Array voltage capacity optionally available.
• Inbuilt charge controller
• MPPT- Achieved through /ncremental Conductance Algorithms
• Battery charging through Grid up to 100%
• Selectable Priority feature (Solar- Battery-Grid) / (Solar-Grid- Battery)
• DC fan for low power consumption
• In built isolation transformer for galvanic isolation
• 128 x 64 Graphics display.
• Variable fan speed - for increased reliability, results into lesser dust suction inside the cabinet
• Net Metering Facility (Power Export) available (Model -1 000E

• Transformer-Less design and compact design
• Mimic LCD Display
• IP65 /ndustrial protection class
• Optional Remote monitoring through GPRS/Wifi Kit
• MPPT Efficiency > 99%
• Wide Voltage Range for Synchronisation
• Maximum Efficiency > 98%
• Wide Frequency Range for Synchronisation (45-55Hz)

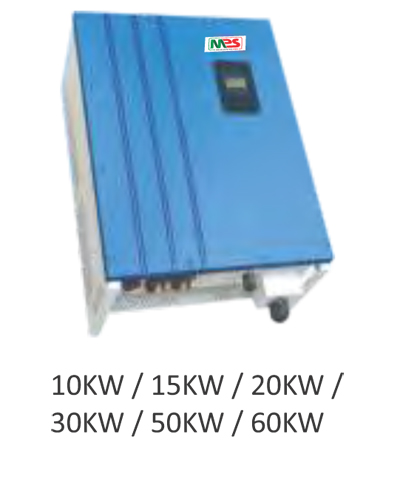

Design :

• Max PV Voltage upto 1000V
• 2 MPPT 10 20KW, 3 MPPT 30 60KW
• High efficiency up to 98.0% 98.6%
• Smaller and Lighter
• DC Fuse optional
• String monitoring optional
• Ip65 protection
• Easy /nstallation
• Reactive power controller
• Digital controller
• DC/AC Surge protection
• Type SPD optional

Certification :

• TUV
• CE
• VDE 0126
• VDE4105
• PEA/MEA
• IEC 62109
• IEC 61000
• IEC 61727
• IEC 61683
• IEC 62116

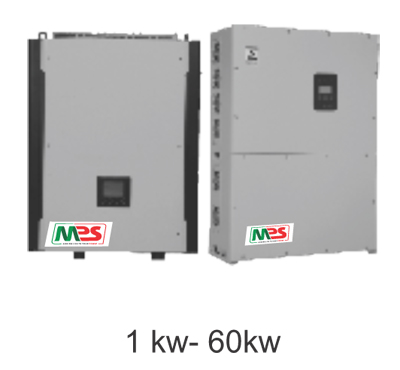

GRID-TIE INVERTER WITH BATTERY BACKUP

GRID-TIE INVERTER WITH ENERGY STORAGE - HYBRID SOLAR SOLUTIONS

• Pure sine wave output
• Local Load Consumption and Export to grid
• Can be programmed supply priority for Solar, Battery or Grid
• User-adjustable charging current and Models (Optilonal) voltage
• Programmable multiple operation modes like On-Grid, Off-Grid and On-Grid with Battery Backup
• Parallel operation up to 6 units Solar, available for 3kw/4kw/5kw & 10kw Models(Optional)
• Communication - RS - 232, Modbus, SNMP & GPRS(Optional) Power

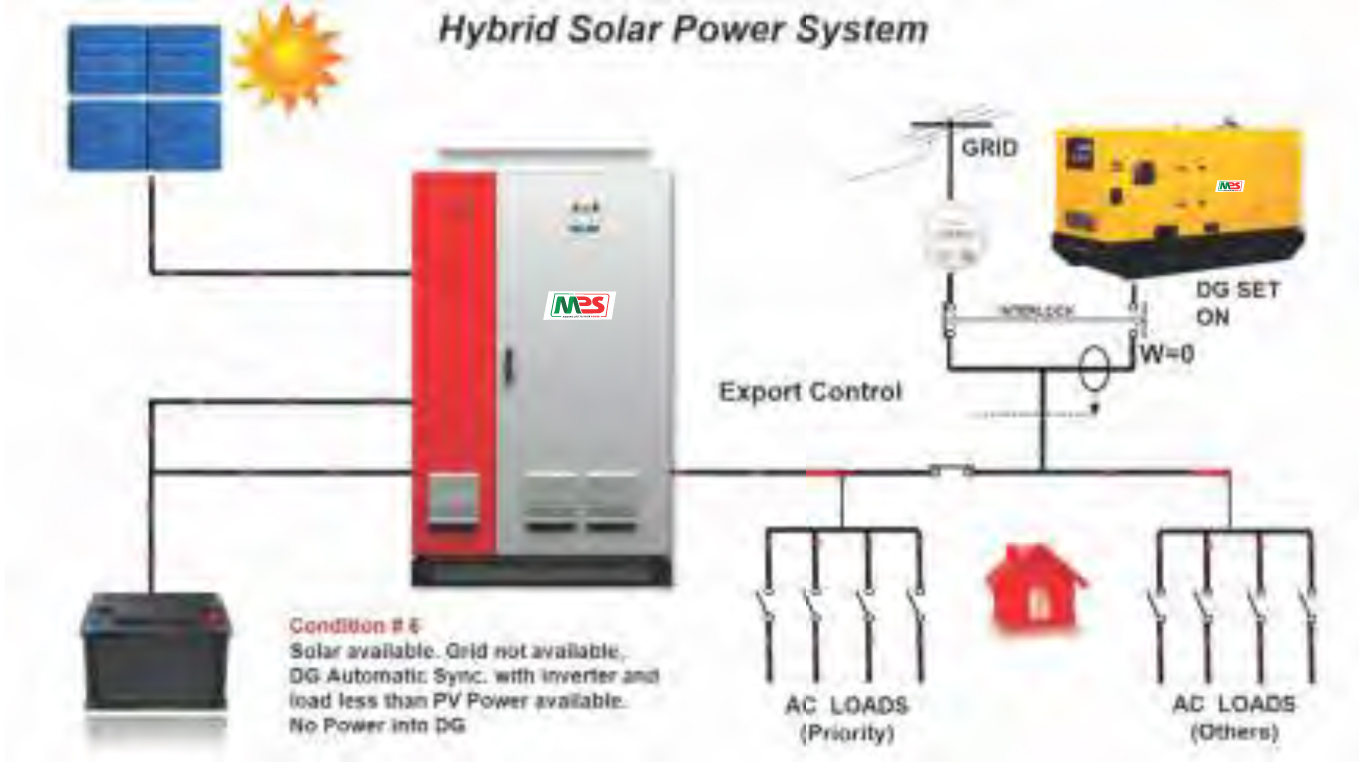

One Hybrid Inverter is a flexible and intelligent inverter which utilizes Solar power, AC Grid and Battery power source to supply continuous power to Load. It's a simple and smart solar power storage system with grid export facility for Customers to either store energy into a battery and can be use in night or use for self consumption depending on demands. Priority for power source can be programmed and set up through smart software. During night time or power outages, it will automatically extract power from the battery source. ln this way, it will reduce dependence on the Grid power.

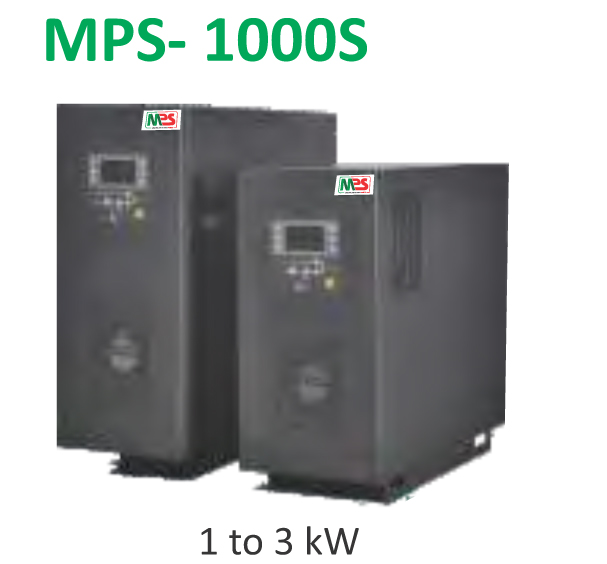

MPS SOLAR INVERTER WITH ENERGY STORAGE

SPECIAL FEATURES

• 18 bit DSP miltrollens
• High efficiency
• Truo Bi-cliredionel Solar / Netter
• Hlgtler Anay valtag & capacity optionally available
• lnbuilt MPPT charge controller
• Scllectable source feature - Grid / Battery
• DC fan for low power ccmsumpllon
• lnbuilt Isolation transformer for galvanic isolation
